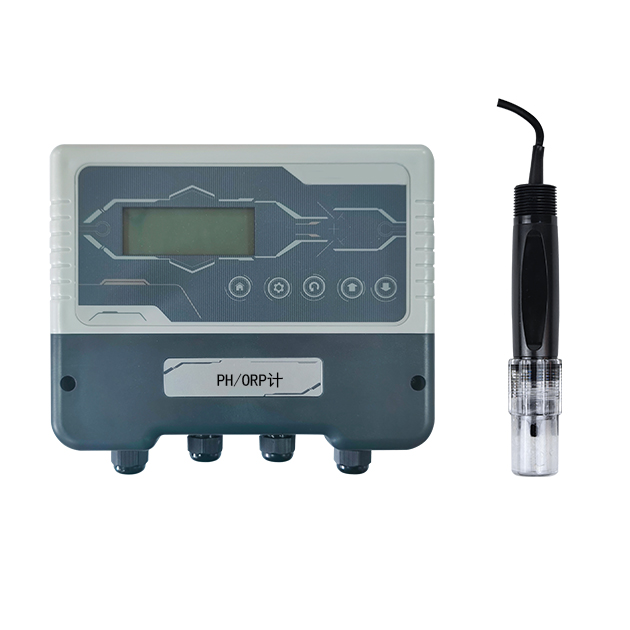

The pH scale of a PH/ORP analyzer is generally divided into two basic properties: acid and base. Acid must have free hydrogen ions. Alkali must have free hydroxide ions. PH is the parameter that directly reacts hydrogen ions with hydroxide ions. If the number of hydrogen ions far exceeds that of hydroxide ions, the solution is acidic. If the number of hydroxide ions far exceeds that of hydrogen ions, the solution is alkaline. If the number of hydrogen ions is equal to the number of hydroxide ions, the solution is neutral.
1. The menu structure is easy to operate;
2. Multi parameter display on the same screen;
3. Notepad function;
4. Adapt to various types of measuring electrodes;
5. Four calibration methods;
6. Multiple signal outputs;
7. Manual current source function;
8. There are various installation methods and simple maintenance.
model | YK-PHG-2091 | YK-PHG-3081 |
measuring range | 0-14PH | 0-14pH |
temperature compensation | 0~99℃ | 0-99.9 ℃/0-150 ℃ (customized) |
Accuracy | ±1%FS | ±1%FS |
resolving power | 0.05PH，±0.3℃ | 0.05PH，±0.3℃ |
communication interface | RS485 (optional) | RS485 (optional) |
output signal | 4-20mA isolation protection output, capable of dual current output | 0 |
Alarm relay | AC 220V 3A | AC 220V,3A |
Power Supply |
| AC 220V ± 22V50HZ ± |
Protection level | IP65 | IP65 (aluminum shell) |
Operation menu | Chinese | Chinese/English |
External dimensions | 96*96*110mm | 146*146*150mm |
Hole size | 92*92mm | 138*138mm |
Installation method | Wall mounted/disk mounted | |
Working conditions | Environmental temperature: 0-60 ℃; Relative humidity<90% | Environmental temperature: 0-60 ℃; Relative humidity<90% |
Application scenarios | Environmental protection, chemical industry, tap water | Thermal power, chemical industry, metallurgy, environmental protection, pharmaceuticals, biochemistry, food and tap water |
